Introduction
Phosphor bronze is a versatile and resilient alloy known for its excellent strength, corrosion resistance, and low friction properties. Primarily made from copper with the addition of tin and phosphorus, this material is used widely in industries where reliability, durability, and flexibility are critical. The addition of phosphorus not only improves the strength and hardness of bronze but also increases wear resistance, making it ideal for applications ranging from musical instruments to heavy machinery.
This alloy’s properties make it particularly valuable in sectors like electronics, marine engineering, and industrial machinery. But what exactly is phosphor bronze, and why is it so widely used? Let's explore.
What is Phosphor Bronze?
Phosphor bronze is a copper-based alloy that includes approximately 0.5%–11% tin and a small amount of phosphorus, usually less than 1%. The addition of these elements enhances the material’s durability, elasticity, and corrosion resistance. Here’s a breakdown of its key components:
Copper: The base metal provides high thermal and electrical conductivity.
Tin: Enhances the alloy’s strength and resistance to corrosion.
Phosphorus: Increases wear resistance and stiffness, making phosphor bronze ideal for precision components.
Common Applications
Phosphor bronze is widely used in various fields, including:
Electrical connectors and springs due to its excellent conductivity and fatigue resistance.
Bearings and bushings because of its low friction properties.

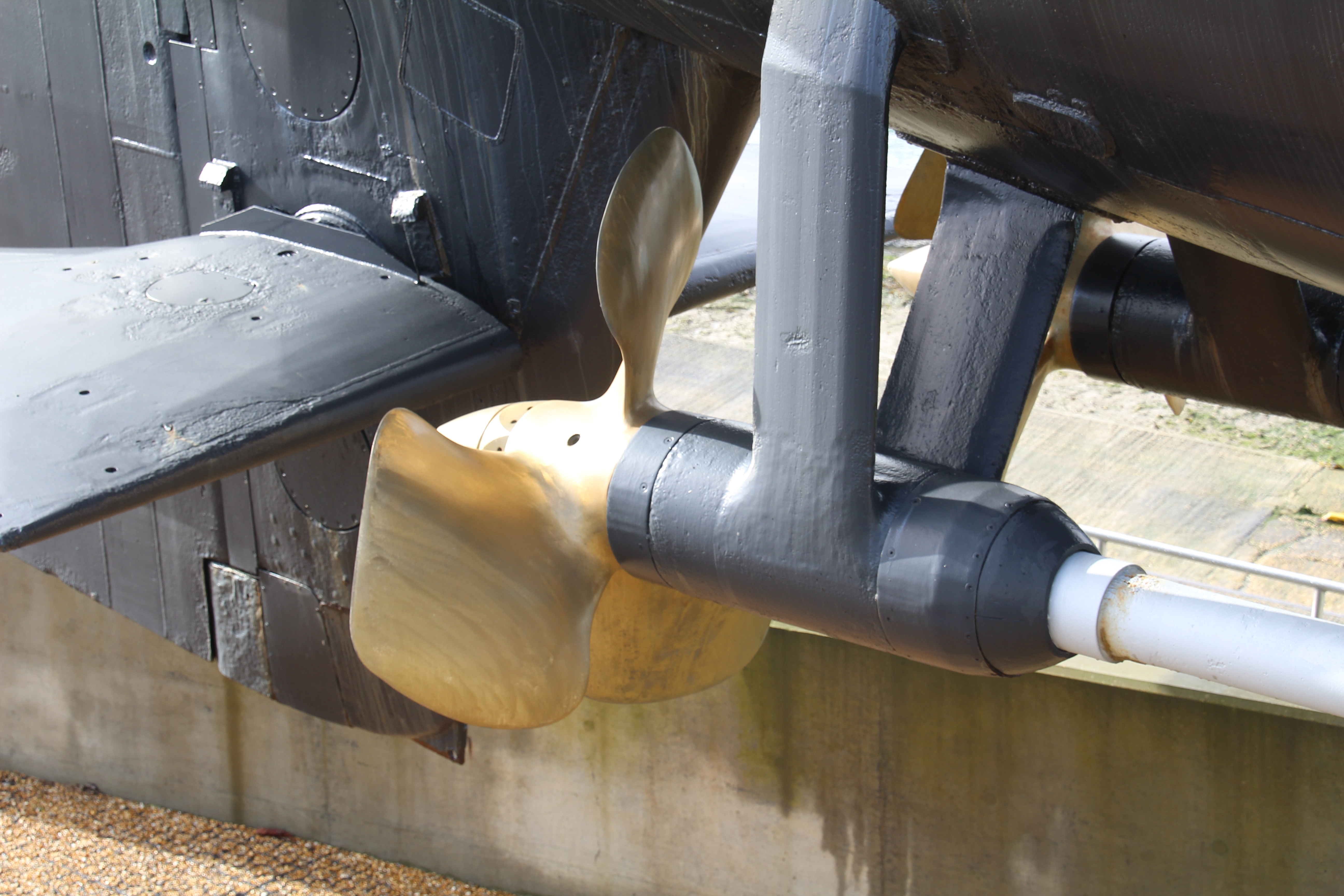

Marine applications, where its corrosion resistance is valuable for components exposed to saltwater.
These characteristics make phosphor bronze a preferred choice for components that must endure stress, wear, and corrosive environments.
How Strong is Phosphor Bronze?
| Property | Typical Range/Value | Description |
| Tensile Strength | 300 – 700 MPa | The alloy's tensile strength allows it to withstand significant loads, ideal for high-stress applications. |
| Yield Strength | 170 – 450 MPa | Indicates the point at which phosphor bronze begins to deform permanently under stress. |
| Fatigue Strength | Up to 250 MPa | Excellent resistance to repeated or cyclic loads, ideal for springs and connectors. |
| Hardness | 80 – 150 HB (Brinell Hardness) | Shows high hardness, contributing to wear resistance and durability. |
| Elongation | 15% – 35% | Good elongation provides some flexibility, reducing risk of brittle fractures. |
| Density | 8.8 g/cm³ | Similar to copper, providing good balance between strength and weight. |
| Corrosion Resistance | High | Excellent resistance to corrosion, especially in marine and outdoor environments. |
What are the Advantages and Disadvantages of Phosphor Bronze?
Like any material, phosphor bronze has its pros and cons. Understanding these can help determine if it’s the right choice for your application.
Advantages
High Strength and Durability: Its composition gives phosphor bronze excellent tensile strength and hardness, allowing it to withstand mechanical stress.
Excellent Corrosion Resistance: Suitable for marine and outdoor applications where exposure to moisture and corrosive elements is high.
Low Friction: Its low coefficient of friction reduces wear, making it ideal for moving parts like bearings.
Electrical Conductivity: Phosphor bronze is a good conductor, making it suitable for electrical connectors.
Disadvantages
Cost: Phosphor bronze can be more expensive than other alloys due to its tin content and specialized processing.
Lower Conductivity than Pure Copper: While it’s a good conductor, it’s not as conductive as pure copper, which may limit its use in some high-current applications.
Machinability: Phosphor bronze can be challenging to machine and may require specialized tools, adding to manufacturing costs.
Despite these drawbacks, the advantages often outweigh the disadvantages in applications where strength, corrosion resistance, and fatigue performance are essential.
Conclusion
Phosphor bronze is a unique and valuable alloy with a range of applications across multiple industries. Its blend of strength, corrosion resistance, and conductivity makes it suitable for components that demand durability and reliability. From the delicate tones of guitar strings to the rugged demands of marine and industrial components, phosphor bronze proves its versatility and resilience.
